$117

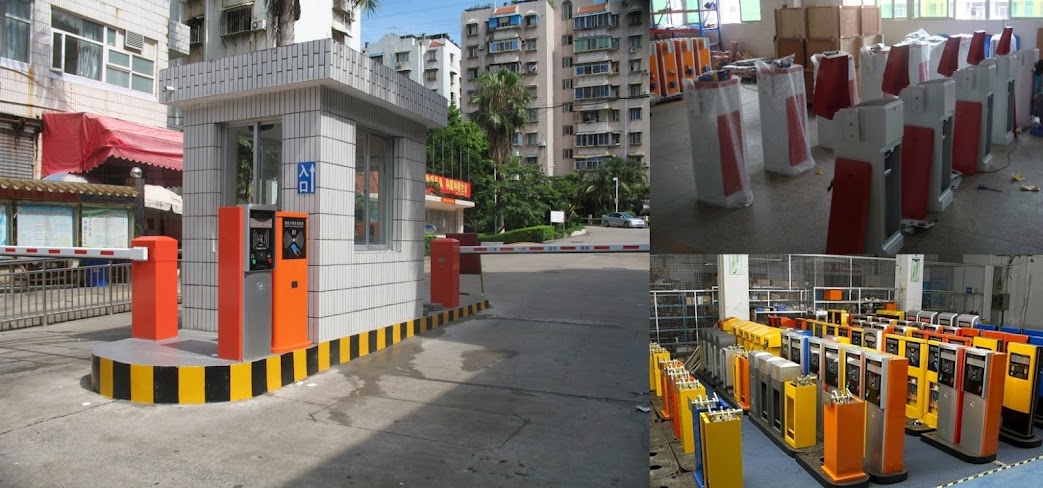

RFID Reader promag MF7 ini hanya read saja, cocok digunakan untuk sistem parkir, absensi, access control dan aplikasi berbasis RFID yang lainnya.
The MF7 is a very high performance proximity readerfeaturing medium range and small dimensions. The unit will run from any voltage from 5~18 V (DC). The MF7 also features good read range at 5 Volts , making it ideally suited to a wide variety ofapplications, particularly access control.
Power Requirements : 5~18 Volts regulated DC at 150 mA typical with a 12V supply.
A linear regulator
is recommended.
Interface : Wiegand , Magstripe ,9.6K Baud Serial
ASCII (RS232)
Or special to
customer specifications.
Typical Maximum Read : Range 2~5 cm at
5~18V with Mifare card. In ideal conditions
Frequency : 13.56MHz standard
Transponder : Read Only (For Unique Serial Number / Unique
Identifier)
Read Only (Mifare Ultralight MF0 ICU1)
Read Only (Mifare Standard MF1 ICS50)
Read Only (Mifare 4k MF1 ICS70)
Read Only (Mifare DESFire MF3 ICD40)
Read Only (Mifare Ultralight MF0 ICU1)
Read Only (Mifare Standard MF1 ICS50)
Read Only (Mifare 4k MF1 ICS70)
Read Only (Mifare DESFire MF3 ICD40)
Audio/Visual Indication : Internal LED
and Buzzer
Dimensions : 8.3 x 4.7 x 1.6 cm
Operating Temperature : -10 to 60
Deg C.(-35~+80 For MF7-25)
Interface Cable :
90 cm
Output Assignment :
Red Power 5-18 Volts
Black Power 0 Volt
White Magstripe clock & Wiegand 1 , with internal 4k7 pull up
Green RS232 data , Magstripe data & Wiegand 0 , with internal 4k7
Pull up (pull up only for Wiegand and Magstripe)
Orange Card Present Output with internal 4k7 pull up
Yellow Program Input
Blue External Beep. Connect to GND 0 Volts.
Brown LED ( External source Connect to GND 0 Volts )
Black Power 0 Volt
White Magstripe clock & Wiegand 1 , with internal 4k7 pull up
Green RS232 data , Magstripe data & Wiegand 0 , with internal 4k7
Pull up (pull up only for Wiegand and Magstripe)
Orange Card Present Output with internal 4k7 pull up
Yellow Program Input
Blue External Beep. Connect to GND 0 Volts.
Brown LED ( External source Connect to GND 0 Volts )
